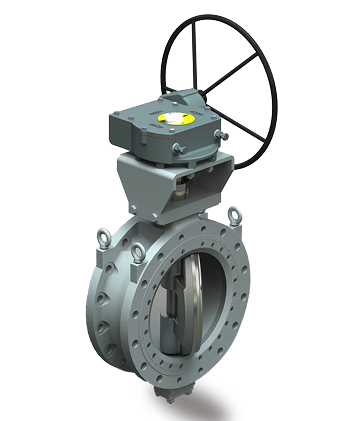

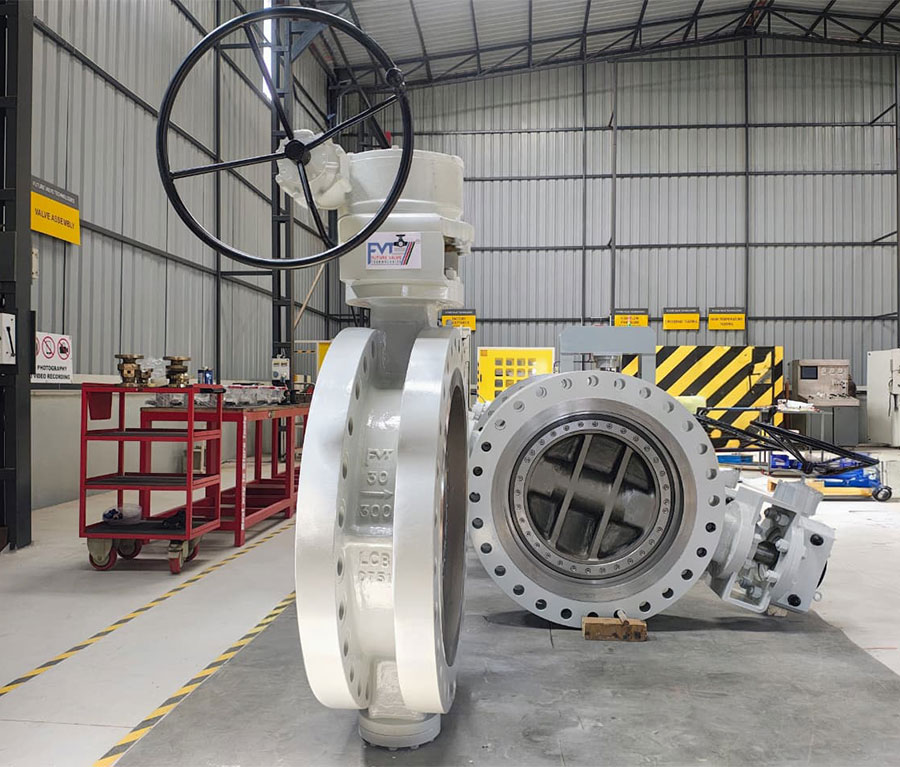

High Performance Triple Offset Butterfly Valves

Valve Type Pressure Class Size Range
HIGH PERFORMANCE TRIPLE OFFSET BUTTERFLY VALVES 150# to 2500# 2” to 24”

Function

Future Valve Technologies (FVT) presents High Performance Triple Offset Butterfly Valves, engineered to replace traditional valve types in critical applications requiring zero leakage and high reliability. The triple offset design ensures that the disc and seat do not come into contact until fully closed, significantly reducing wear and extending valve life. These valves provide bubble tight sealing and are ideal for handling high-pressure, high-temperature applications. Meeting stringent industry standards, FVT's Triple Offset Butterfly Valves deliver superior performance, minimal maintenance, and are increasingly favored over conventional valves for their efficiency and durability in demanding environments.

Codes and Standards

  • API 609 Category B
  • ASME B 16. 34
  • ASME 16.5
  • ASME 16.10
  • MSS SP 25
  • MSS SP 45
  • MSS SP 55
  • API 598

Features

  • Triple offset design
  • Blowout proof shaft
  • Bi-directional shut off

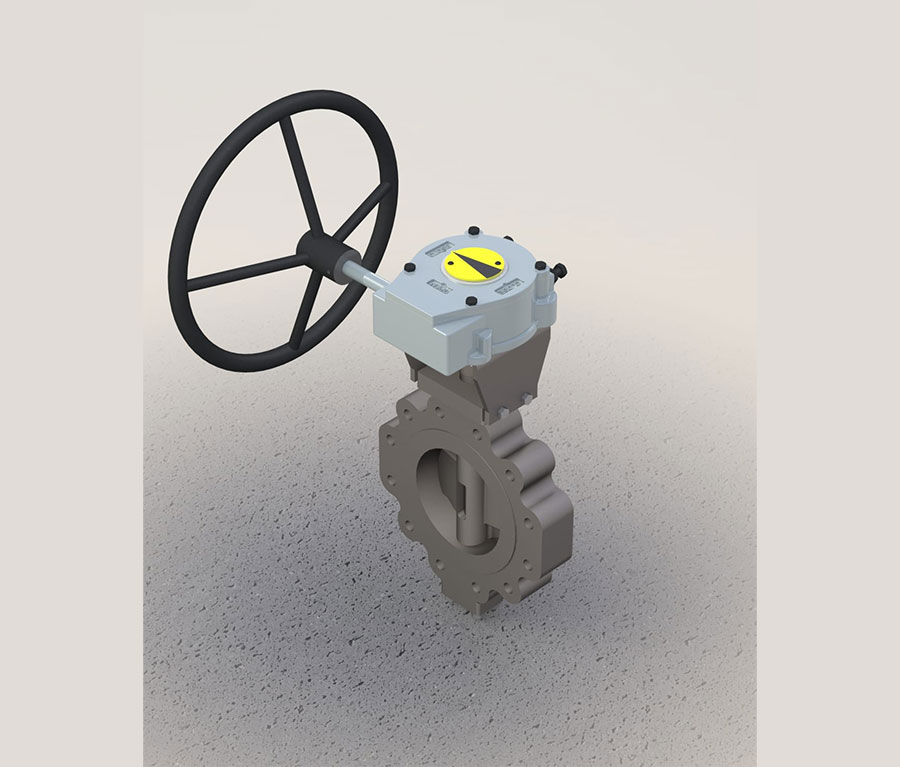

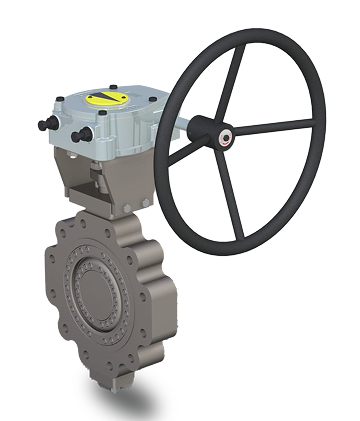

  • Lug type suitable for dead end service
  • Oblique sealing surface
  • Seat Sealing combinations Stellited + Graphite, Laminated seat, Solid metal seat
  • ISO 5211 top flange for direct mounting Gearbox/ actuator

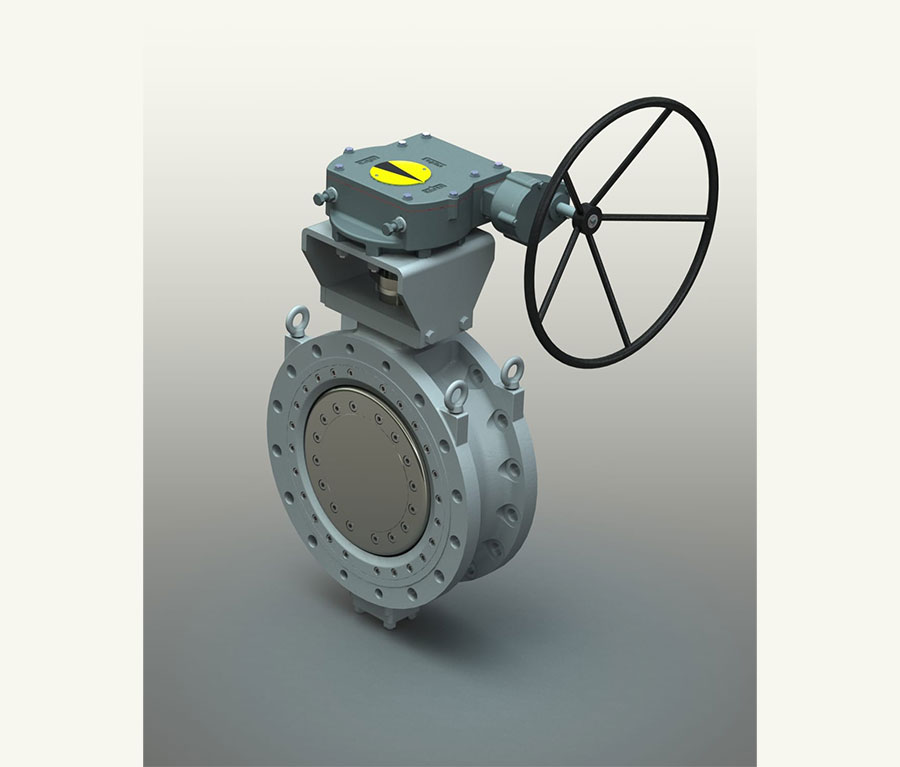

  • End connections - Wafer, Lug or Double Flanged
  • Disc - Torque seated
  • Body in various cast materials as specified by customers
  • Various trim material options as specified by customers

Optional Features

  • Live loaded gland
  • Various seat materials such as solid seat Inherently Fire Safe
  • Inherently Fire Safe
  • Fire safe tested as required by customers
  • Steam jacketed
  • Extended bonnet for cryogenic service
  • Extended bonnet for high temperature service
  • Low Fugitive Emission tested and certified

Triiple Offset

Size/Class 150 300 600
DN50 X X X
DN65 X X X
DN80 X X X
DN100 X X X
DN150 X X X
DN200 X X X
DN250 X X X
DN300 X X X
DN350 X X X
DN400 X X
DN450 X X
DN500 X X
DN550 X X
DN600 X X

Double Offset

Size/Class 150 300
DN50 X X
DN65 X X
DN80 X X
DN100 X X
DN150 X X
DN200 X X
DN250 X X
DN300 X X
DN350 X X
DN400 X X
DN450 X X
DN500 X X
DN550 X X
DN600 X X

For larger sizes & customized solutions

please reach out to Future Valve Technologies
