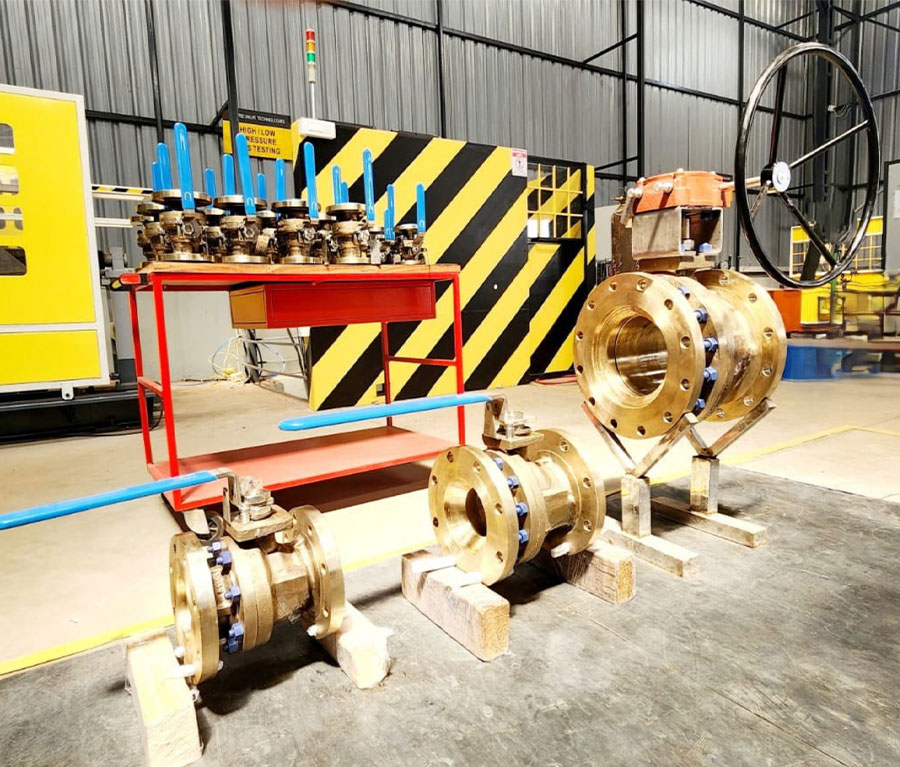

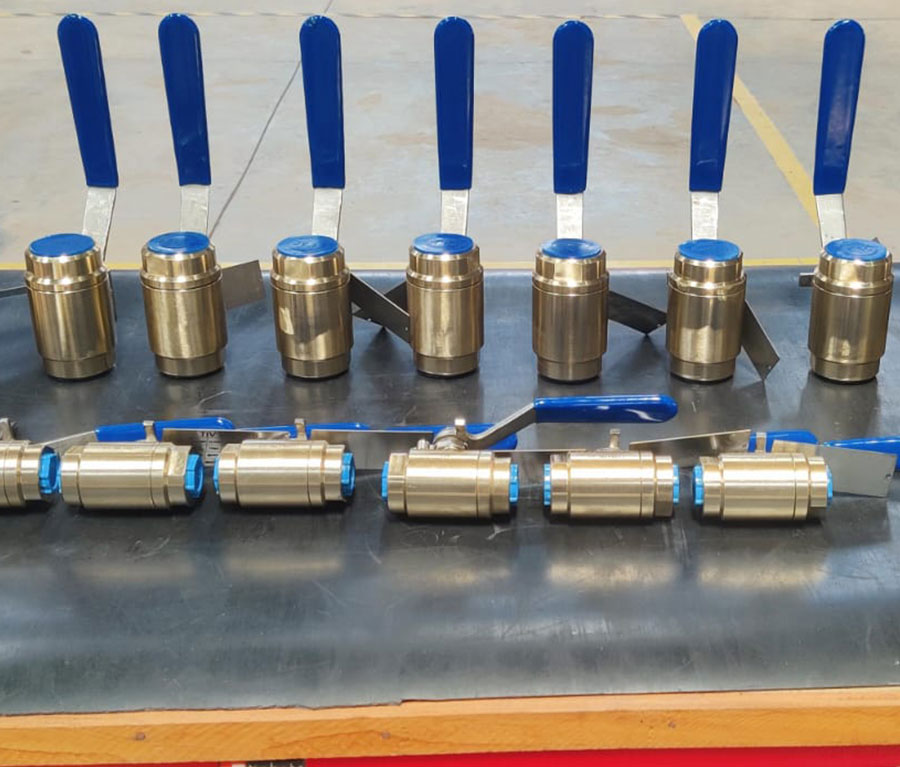

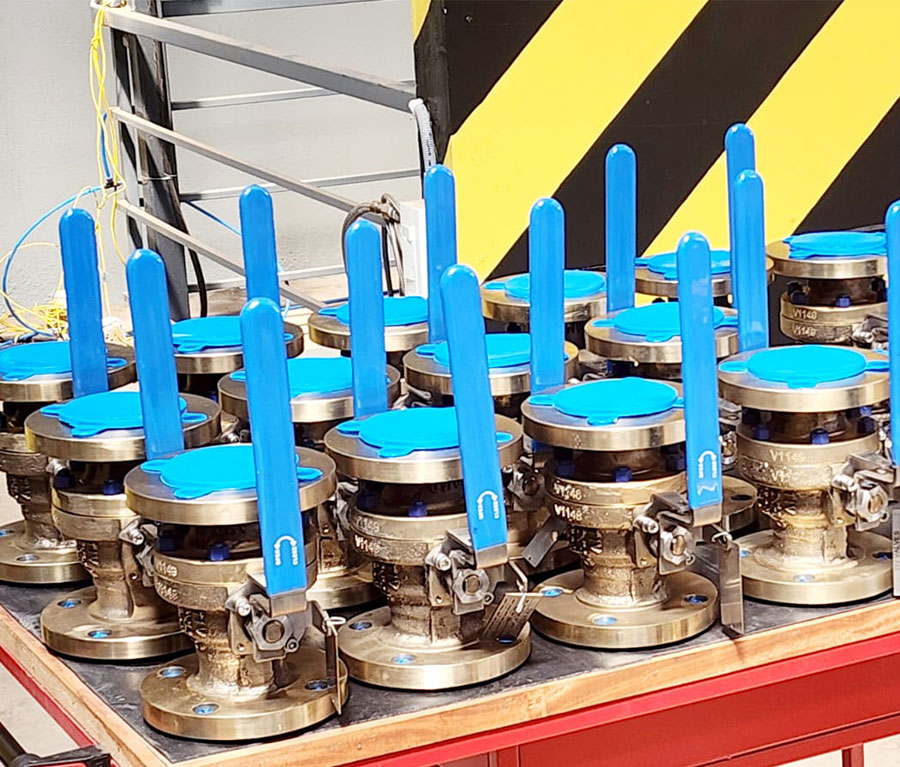

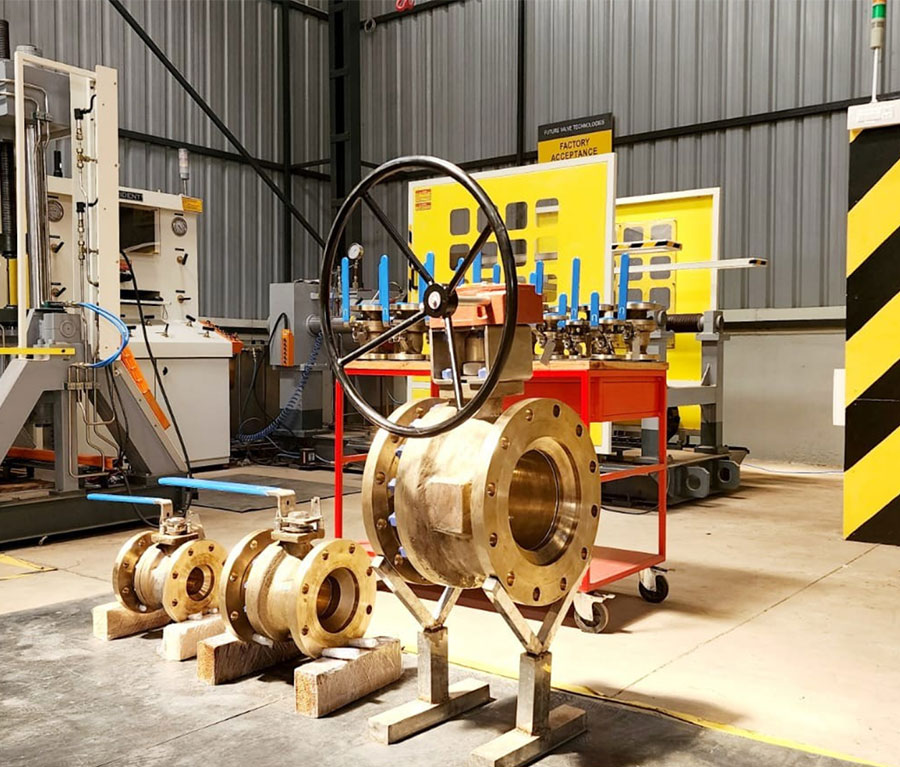

Ball Valves Floating

Valve Type Pressure Class Size Range
FLOATING BALL VALVES 150# to 2500# 1/2" to 12"

Function

Future Valve Technologies (FVT) offers Floating Type Ball Valves, designed for reliable and versatile performance in a wide range of industrial applications. The floating ball design allows the ball to move slightly, ensuring a tight seal by pressing against the downstream seat when pressure is applied. This simple yet effective design offers excellent sealing performance, particularly in low to medium pressure applications. FVT's Floating Type Ball Valves are manufactured to meet stringent international standards, ensuring dependable operation, ease of maintenance, and long service life in demanding environments.

Codes and Standards

  • API 6D/608/BS EN ISO 17292
  • ASME B 16. 34
  • ASME 16.5
  • ASME 16.10
  • MSS SP 25
  • MSS SP 45
  • MSS SP 55
  • API 598

Features

  • Downstream seated floating ball
  • Blowout proof stem
  • Bi-directional shut off
  • RPTFE/ DEVLON/ PEEK seat
  • ISO 5211 top flange for direct mounting gearbox/ actuator
  • End connections - Flanged, Butt weld, Socket weld or Screwed ends.
  • Locking arrangement
  • Cavity Pressure relieving seats
  • Body in various cast/forged materials as specified by customers
  • Various trim material options as specified by customers
  • Two piece/ three piece side entry or top entry designs
  • Full or reduced bores

Special Features

  • Extended stem
  • Metal seated - various combinations of
  • seats and designs
  • Fire safe certified
  • Single piece end entry designs in reduced bore
  • Extended bonnet for cryogenic service
  • Extended bonnet for high temperature service
  • Low Fugitive Emission tested and certified.

Full Bore Range

Size/Class 150 300 600 900 1500 2500
DN15 LP LP LP LP LP LP
DN20 LP LP LP LP LP LP
DN25 LP LP LP LP LP LP
DN32 LP LP LP LP LP
DN40 LP LP LP LP LP
DN50 LP LP LP
DN65 LP LP
DN80 LP LP
DN100 LP LP
DN150 LP/SP
DN200 LP/SP
DN250 LP/SP
DN300 LP/SP

Reduced Bore Range

Size/Class 150 300 600 800 900 1500 2500
DN15 x 10 LP LP LP SW/se LP LP LP
DN20 x 15 LP LP LP SW/se LP LP LP
DN25 x 20 LP LP LP SW/se LP LP LP
DN32 x 25 LP LP LP SW/se LP LP LP
DN40 x 32 LP LP LP SW/se LP LP
DN50 x 40 LP LP LP SW/se LP LP
DN65 x 50 LP LP LP
DN80 x 65 LP LP
DN100x 80 LP LP
DN150 x 100 LP/SP LP
DN200 x 150 LP/SP
DN250 x 200 LP/SP
DN300 x 250 LP/SP
  • LP - Long Pattern
  • SP - Short Pattern
  • SW - Socket Weld
  • SE - Screwed Ends

For larger sizes & customized solutions

please reach out to Future Valve Technologies
