Valve Type Pressure Class Size Range
Check Valves - Non Slam & Dual Plate 2000# to 15000# 1 13/16” to 18 3/4”

Function

Future Valve Technologies (FVT) provides a comprehensive range of API 6A Ball, Gate, Plug, and Check Valves, specifically designed for high-pressure oil and gas applications. These valves meet the stringent requirements of API 6A, ensuring reliable performance in critical wellhead and Christmas tree systems. FVT's API 6A valves are engineered for durability, featuring robust designs that withstand harsh environments and high pressures. Whether for isolation, flow control, or backflow prevention, FVT's API 6A Ball, Gate, Plug, and Check Valves offer superior safety, longevity, and operational efficiency, making them the preferred choice in demanding oil and gas applications.

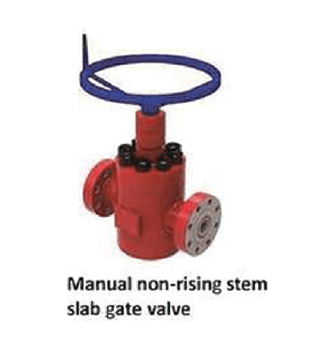

Slab Gate Valve

  • Work Pressure: 2000psi ~ 15000 psi
  • Nominal bore: 113/16" ~ 7 1/16"
  • Medium: petroleum, natural gas, mud, gas containing H2S and Co2
  • Temperature level: LU (-51° F~250°F)
  • Material class: AA` BB` CC` DD` EE` FF` HH`
  • Product Specification Level: PSL1~3G
  • Product Performance Level: PR1

Ball Screw Gate Valve

Our FLS ball screw gate valve is designed for the large bore and high the valve combines the balance stem and unique ball principle, whichh with low torque.

Choke Valve

The choke valve is to control the fluid flow by changing the choke section or choke length. As the main component of the X-mastree and manifold, it is mainly used to control the output of the wellhead on the oil well.

Codes and Standards

  • API 6A

Features

  • The sealing surface of seat and gate is sprayed or overlayed with hard alloy, which is corrosion-resistant and washing-resistant
  • The sealing of seat, gate and stem adopts the wellhead lip type combined sealing structure, which is safe and reliable, and the valve opening and closing torque is small
  • The stem is designed with an inverted sealing device and the packing sealing could be replaced under working pressure;
  • The gate valve is classified into rising stem non-rising stem. There is apparent marking when the valve is open.
  • The gate has integral type and expanding type.
  • The seat has floating type and fixed type.
  • The drive mode: includes manual handwheel operated, hydraulic operated, pneumatic operated or upon request
  • The end connection includes flange ends and threaded
Size/Inches Pressure Class (PSI)
1 13/16 2,000 3,000 5,000 10,000 15,000
2 1/16 2,000 3,000 5,000 10,000 15,000
2 9/16 2,000 3,000 5,000 10,000 15,000
3 1/8 2,000 3,000 5,000 10,000 15,000
4 1/16 2,000 3,000 5,000 10,000 15,000
5 1/8 2,000 3,000 5,000 10,000
7 1/16 2,000 3,000 5,000 10,000 15,000
9 2,000 3,000 5,000 10,000
11 2,000 3,000 5,000 10,000
13 5/8 2,000 3,000 5,000 10,000
16 3/4 2,000 3,000 5,000 10,000
18 3/4 2,000 3,000 5,000 10,000

FLS Ball Screw Gate Valve Specification

Nominal Bore (in) Work Pressure (psi) Dimensions Weight (kg/Lbs) Switch Turns
A (in) B (in) C (in) D (in)
4-1/16" 15000 29 24 42 24 1721 19 19
5-1/8" 10,000 29 23 30 43 24 1898 23
15000 31 31 43 31 3133 24 24
7-1/16" 10,000 35 35 48 43 3972 31 31
15000 41 37 58 31 5792 31 31

Needle & Seat/Positive Choke Valve Specifications

Orifice Flange Size Dimensions A (in) Dimensions B (in)
1" 2-1/16" 5000psi 81" 71"
2-1/16" 5000psi 8 7
2-1/16" 10000psi 9 8
2-1/16" 10000psi 9 8
2-1/16" 15000psi 10 9
2-1/16" 15000psi 12 11
2" 2-9/16" 5000psi 10 8
2-9/16" 10000psi 12 10
2-9/16" 15000psi 12 10
3-1/16" 3000psi 12 9
3-1/16" 5000psi 12 9
3-1/16" 10000psi 12 10
3-1/16" 15000psi 12 10
4-1/16" 3000psi 12 10
4-1/16" 5000psi 12 10
4-1/16" 10,000psi 14 11
3" 4-1/16" 3000psi 12 10
4-1/16" 5000psi 12 10

For larger sizes & customized solutions

please reach out to Future Valve Technologies
