Valve Type Pressure Class Size Range
TRUNNION MOUNTED BALL VALVES 150# to 2500# 2" to 24"

Function

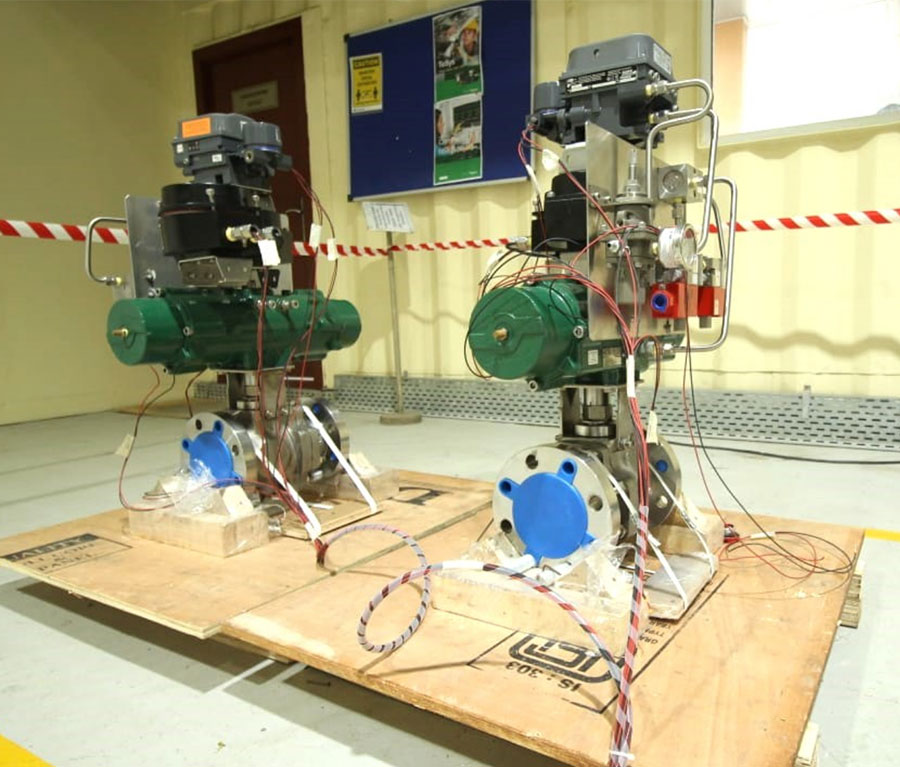

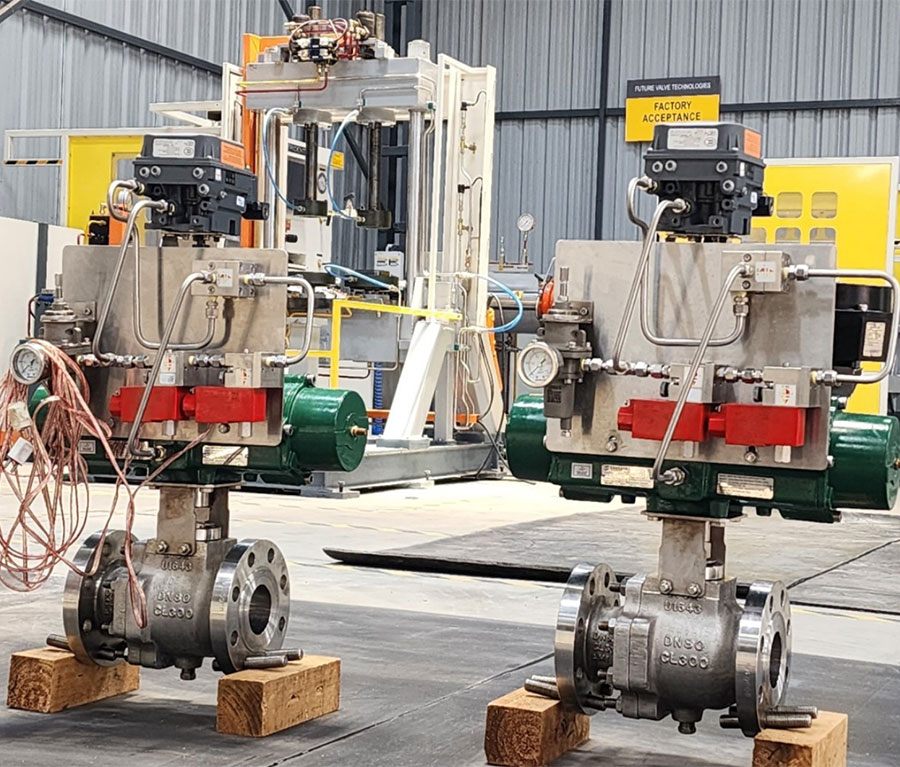

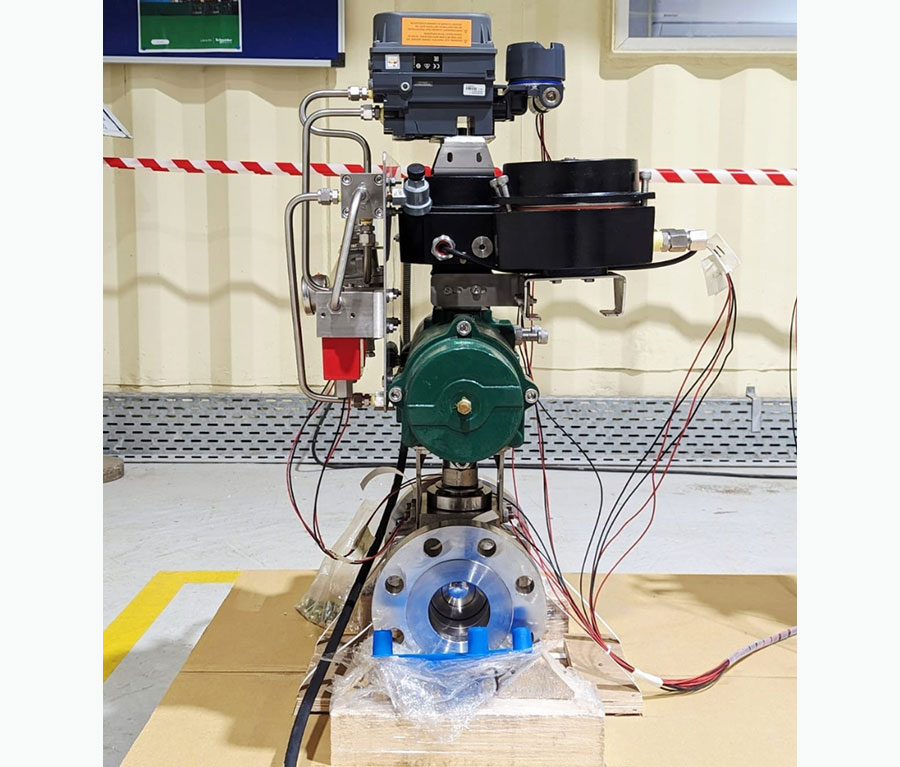

Future Valve Technologies (FVT) presents Trunnion Mounted Ball Valves, engineered for superior performance in critical applications. These valves are designed to handle high pressure and temperature with precision. The trunnion-mounted design enhances stability, reduces operating torque, and ensures reliable sealing, even under extreme conditions. Built to meet API 6D standards, FVT's Trunnion Mounted Ball Valves offer exceptional durability, safety, and efficiency, making them an ideal choice for demanding industrial environments.

Codes and Standards

  • API 6D
  • ASME B 16. 34
  • ASME 16.5
  • ASME 16.10
  • MSS SP 25
  • MSS SP 45
  • MSS SP 55

Features

  • Upstream seated trunnion ball
  • Blowout proof stem
  • Bi-directional shut off
  • RPTFE/ DEVLON/ PEEK seats
  • ISO 5211 top flange for direct mounting Gearbox/actuator
  • End connections - Flanged, Butt weld, Socket weld or Screwed ends.
  • Locking arrangement Cavity Pressure self - relieving seats, both single piston effect seats. Body in various cast/forged materials as specified by customers
  • Various trim material options as specified by customers
  • Two piece / three piece side entry or top entry Designs
  • Full or reduced bores

Special Features

  • Extended stem
  • Metal seated - various combinations of seats and designs
  • DIB - 1 or DIB - 2 type seats arrangements
  • Fire safe certified
  • Extended bonnet for cryogenic service
  • Extended bonnet for high temperature service
  • Customer specified Low Fugitive Emission tested and certified.

Full Bore Range

Size/Class 150 300 600 900 1500 2500
DN50 LP LP LP LP LP LP
DN65 LP LP LP LP LP LP
DN80 LP LP LP LP LP LP
DN100 LP LP LP LP LP LP
DN150 LP/SP LP LP LP LP LP
DN200 LP/SP LP LP LP LP LP
DN250 LP/SP LP LP LP LP LP
DN300 LP/SP LP LP LP LP LP
DN350 LP/SP LP LP LP LP LP
DN400 LP/SP LP LP LP LP LP
DN450 LP/SP LP LP LP LP LP
DN500 LP/SP LP LP LP LP LP
DN600 LP/SP LP LP LP LP LP

Reduced Bore Range

Size/Class 150 300 600 800 900 1500 2500
DN50 x 40 LP LP LP LP LP LP LP
DN65 x 50 LP LP LP LP LP LP LP
DN80 x 65 LP LP LP LP LP LP LP
DN100 x 80 LP LP LP LP LP LP LP
DN150 x 100 LP/SP LP LP LP LP LP LP
DN200 x 150 LP/SP LP LP LP LP LP LP
DN250 x 200 LP/SP LP LP LP LP LP LP
DN300 x 250 LP/SP LP LP LP LP LP LP
DN350 x 300 LP/SP LP LP LP LP LP LP
DN400 x 350 LP/SP LP LP LP LP LP LP
DN450 x 400 LP/SP LP LP LP LP LP LP
DN500 x 450 LP/SP LP LP LP LP LP LP
DN600 x 500 LP/SP LP LP LP LP LP LP
  • LP - Long Pattern
  • SP - Short Pattern

For larger sizes & customized solutions

please reach out to Future Valve Technologies
